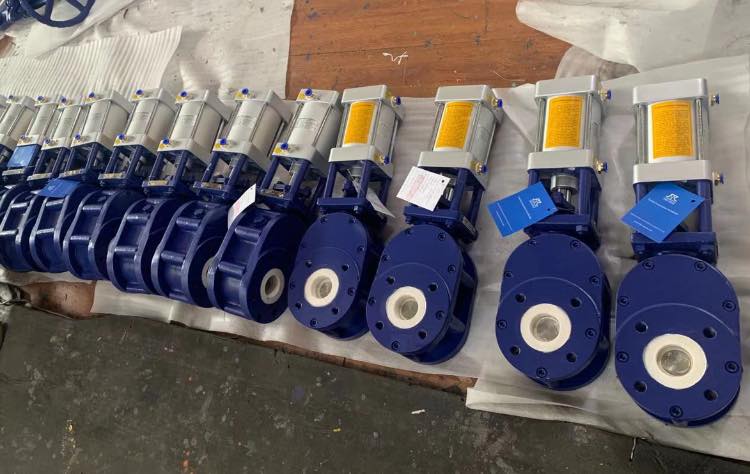

We are preparing the shipment of pneumatic ceramic lined gate valve, parallel slide type, wafer end, body WCB, disc chrome steel, seat ceramic Al2O3, EN1092-1, DN200, PN10, operated by double acting pneumatic cylinder , for fly ash pipelines. Contact us freely via cspneumatic@hotmail.com
Product Description
|
Product name |
Pneumatic ceramic gate valve |
|
Type |
Parallel slide |
|
End |
Wafer end |
|
Working temp |
-20 ℃ to 120 ℃ |
|
Working pressure |
0.3 Mpa |
|
Body material |
ASTM A216 WCB |
|
Disc material |
Chrome steel |
|
Seat material |
99.5% Al2O3 |
|
Pressure rating |
PN10 |
|
Size |
DN200 |
|
Certificate |
API, CE, EAC, SIL |
|
Design standard |
EN 1984 |
|
Face to face standard |
EN 558 |
|
End standard |
EN 1092-1 |
|
Test standard |
EN 12266-1 |
|
Application |
Fly ash |
|
Operation |
Double acting pneumatic cylinder |
|
Project location |
Indonesia |
