Pneumatic Globe Valves

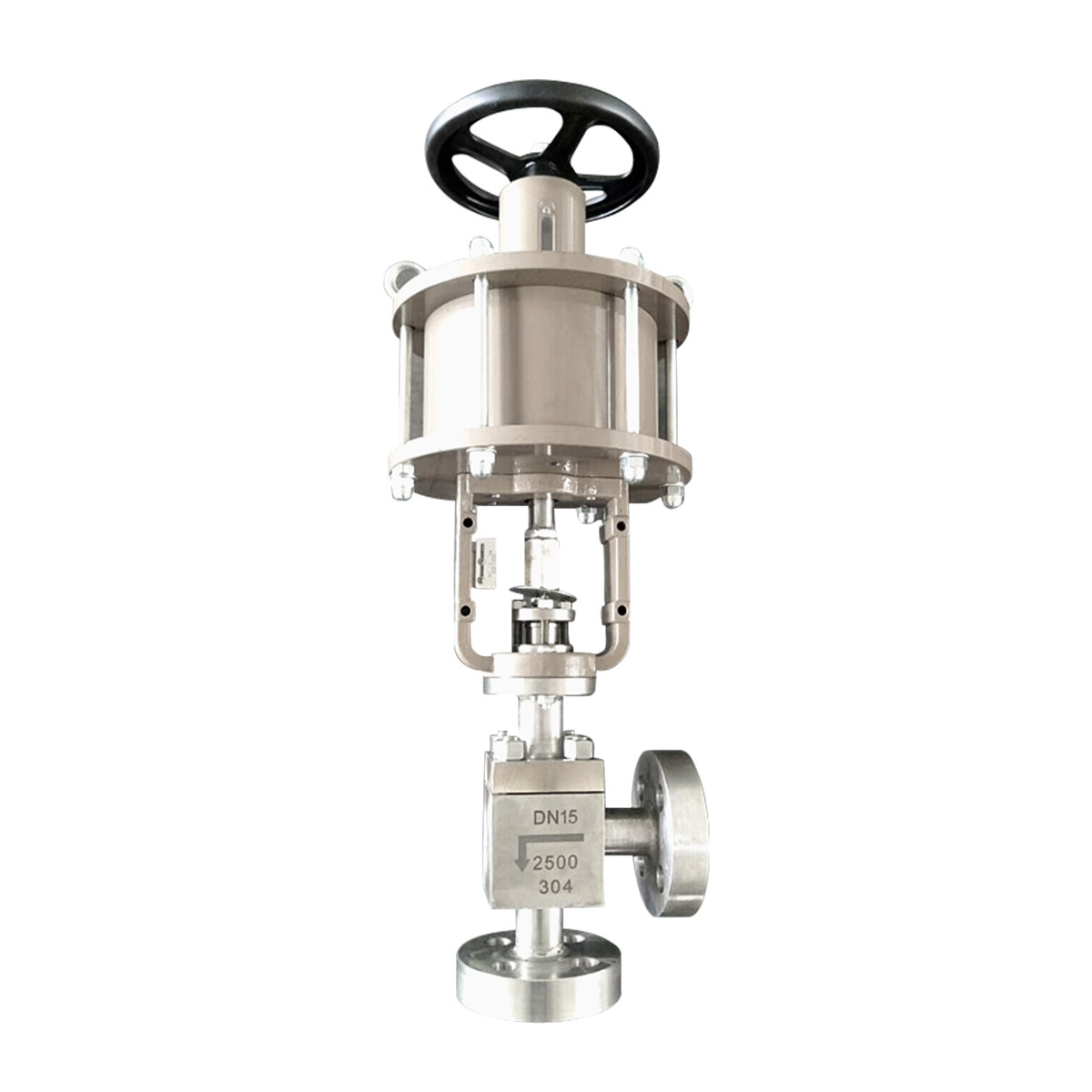

Pneumatic angle type globe valve

Min. Order: 1 Set
Delivery time: 15 days
Production Capacity: 1000 set/Month
Payment Terms: L/C, T/T, D/P, Western Union, Paypal, Money Gram
Product description: The inlet and outlet of the pneumatic angle stop valve are at a vertical angle, and the valve can be installed at the corner of the pipeline system, which not only saves 90° elbows, but also facilitat
INQUIRY EMAIL Catalog

Introduction

The inlet and outlet of the pneumatic angle stop valve are at a vertical angle, and the valve can be installed at the corner of the pipeline system, which not only saves 90° elbows, but also facilitates operation. It is most suitable for use in the synthetic ammonia production system of fertilizer plants and refrigeration in the system.

Features

1. Swivel disc, flat or conical seating;
2. Short working stroke and closing time;
3. Small friction between sealing surfaces and long service life
4. The pneumatic actuator adopts linear type and the manual device can be used for emergency cut-off occasions

Product parts and materials:

Serial number	name	Material
Serial number	name	Carbon steel	Stainless steel
1	Valve body	A216-WCB	A351-CF8
2	Gasket	Flexible graphite + stainless steel	PTFE
3	bolt	A193-B7	A276-304
4	Disc	A216-WCB + surfacing 304 or stellite , PTFE	A351-CF8 PTFE
5	Split ring	A182-F304	A276-304
6	Disc cover	A182-F304	A276-304
7	Stem	A276-410	A276-304
8	Nut	A194-2H	A276-304
9	Eyebolt	A192-2H	A276-304
10	cap	A216-WCB	A351-CF8
11	bolt	A194-2H	A276-304
12	Gasket	A194-2H	A276-304
13	Packing	Flexible graphite	PTFE
14	Gland	A216-WCB	A351-CF8
15	Nut	A194-2H	A276-304

Specification

Valve Size	DN40-DN450 , 1 1/2 '' -18''
Valve Pressure	PN 0.6 Mpa – 10.0 Mpa, Class 150 – class 600
Air Supply	2.5 bars -8 bars, Max 10 bars
Cylinder Stroke	90mm-1030mm
Function	On-off, quick opening and closing, emergency shut-down , flow regulation
Suitable media	Water, oil, gas, air, particles, etc
Working temperature	-40 ℃ to 450 ℃
Ambient temperature	-20°C to 90°C
Optional accessories	solenoid valve, positioner, limit switch, filter, regulator, lubricator, etc
